Linear Gauge component for Axiom forms

The Linear Gauge component for Axiom forms displays a value along a defined standard of measurement. Gauges can have up to three defined ranges of values. Typically, gauge ranges are used to differentiate "good" values versus values that are less desirable or that may indicate trouble.

Bullet charts and gauges are visually similar, but are typically used for different purposes. Although both components display a value along a defined measurement scale, the bullet chart adds the concept of a target value and therefore explicitly communicates performance against a defined goal. The overall appearance of bullet charts is also more streamlined than gauges, which are often styled to resemble real-life measurement tools such as thermometers or speedometers.

NOTE: Your Axiom Software license determines whether you have access to this component. For more information, see Licensing requirements for Axiom forms.

There are two types of gauges available for Axiom forms: Radial and Linear. Both gauges use the same properties to define the gauge, but the display of these properties is different. A radial-style gauge has an appearance similar to a car speedometer, whereas the appearance of a linear style gauge is similar to a thermometer. For more information on radial-style gauges, see Radial Gauge component for Axiom forms.

Component properties

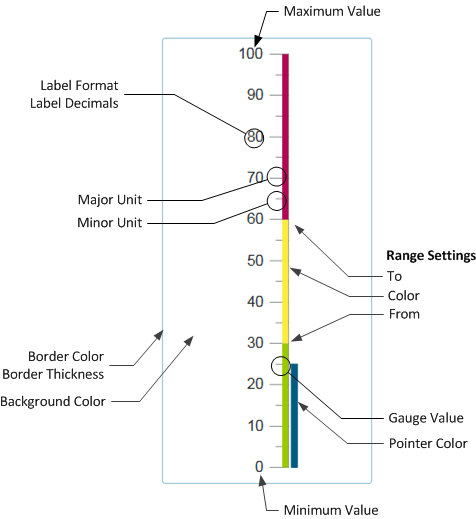

You can define the following properties for a Linear Gauge component. The following screenshot shows an example gauge with the major properties that impact the display:

Component properties can be configured using the Form Assistant task pane or the Form Designer unless otherwise noted. All properties can also be defined on the Form Control Sheet directly if desired. For example, if you want a property to be dynamic depending on the result of a formula, you can define that formula in the control sheet. To access the control sheet settings for the component, double-click any property name to go to that property in the Form Control Sheet.

Component behavior properties

The following properties control the display and behavior of this particular component type.

Item	Description
Gauge Kind	Specifies the kind of gauge: Radial: The measurement ranges are displayed in a circular pattern. The measured value is indicated by a pointer that originates from the center of the circle with the end resting on the measured value. Linear: The measurement ranges are displayed in a straight line. The measured value is indicated by a second bar that starts at the lowest value of the gauge and continues until the reaching the measured value. The gauge kind is selected by default based on what type of gauge you placed on the canvas. You can switch the gauge type using this option.
Gauge Value	The measured value for the gauge. This is the value that will be indicated by the gauge pointer. If you do not specify a value, then the gauge pointer will be at the minimum value for the gauge. NOTE: If the gauge value is outside of the defined scale of measurement for the gauge, the pointer will be set to the minimum or maximum value of the gauge as appropriate (depending on whether the value exceeds the maximum value or is lower than the minimum value).
Minimum Value	The minimum value for the gauge scale of measurement. By default this is 0.
Maximum Value	The maximum value for the gauge scale of measurement. By default this is 100.
Minor Unit	Interval at which tick marks should display on the gauge to indicate values along the measurement scale. By default this is 5.
Major Unit	Interval at which number labels should display on the gauge to indicate values along the measurement scale. By default this is 20. The minimum value and the maximum value are always labeled on the gauge.
Label Format	Specifies the format for the major unit labels: Number (default), Currency, or Percent.
Label Decimals	Specifies the number of decimals to display on the major unit labels. By default, no decimal places are shown (0).
Labels Are Outside Gauge	This option does not apply to linear gauges. If enabled for a linear gauge, it will be ignored. By default, this option only displays on the Form Control Sheet as part of the overall set of gauge properties. It is hidden from the Form Designer and the Form Assistant if you start with a Linear Gauge component. However, if you start with a Radial Gauge and then switch the Gauge Kind to Linear, the option will continue to display but will be ignored. Labels for linear gauges always display to the left of the gauge if the orientation is vertical, and at the bottom of the gauge if the orientation is horizontal.
Orientation	Specifies the orientation of the gauge: Vertical (default) or Horizontal.
Pointer Color	The color of the pointer. If left blank, the pointer color is determined by the style or skin (in that order). Click the [...] button to open the Choose Color dialog. You can select from the colors displayed at the top of the dialog, or you can enter a valid RGB or hexadecimal color code (such as #00FFFF for Aqua). Click OK to use the specified color. If you are modifying the Form Control Sheet directly, then you must use a hexadecimal code. For an example list of colors and hexadecimal codes, see: http://www.w3.org/TR/css3-color/#svg-color (external link).

Range settings

You can define up to three ranges for the gauge. Ranges are defined by a starting and ending value, and a color to shade that range. If you do not want to use a particular range, leave the settings for that range blank.

If you want the ranges to be continuous, then the To value of one range and the From value of the next range should be the same number. For example, if range one is from 0 to 20, then the from value for range two should be 20.

Range colors can be inherited from the style or skin (in that order), or colors can be manually specified. By default, all platform skins are set to use green, yellow, and red.

Item	Description
Range 1 From	The starting value of the range.
Range 1 To	The ending value of the range.
Range 1 Color	The color for the range.
Range 2 From	The starting value of the range.
Range 2 To	The ending value of the range.
Range 2 Color	The color for the range.
Range 3 From	The starting value of the range.
Range 3 To	The ending value of the range.
Range 3 Color	The color for the range.

General properties

The following general properties are available for all components:

Item	Description
Component Name	The name of the component. This is for identification in the file; this name does not display on the Axiom form canvas. The name of the component identifies the corresponding settings for the component on the Form Control Sheet. The component names are also useful if you have multiple types of the same component within an Axiom form, so that you can tell which component you are currently editing. Component names must be unique within a file and must start with a letter. Names can only contain letters, numbers, and underscores. Names are validated when the file is saved; an invalid name will prevent the save. NOTE: Spaces are not allowed in component names and will be automatically removed by Axiom Software. For example, if you enter "My Component" as the component name, it will be automatically adjusted to "MyComponent".
Visible	Specifies whether the component is visible on the Axiom form (On/Off). By default this is set to On. This setting can be used to dynamically show or hide the component using a formula. Keep in mind that if you have multiple components that you need to dynamically show or hide based on the same condition, then it is preferable to place those components on a dedicated layer and then show or hide the entire layer instead of the individual components. NOTE: This setting is only available on the Form Control Sheet; it cannot be set in the Form Assistant or in the Form Designer.
Layer	The layer that the component belongs to on the Axiom form canvas. In the Form Assistant and the Form Designer, this displays as the layer name (for example: Layer 1). In the Form Control Sheet, this is recorded as the layer ID (for example: 1). If the canvas only has one layer, then the component is automatically assigned to that layer and cannot be changed. If the canvas has multiple layers, you can assign the component to any layer using the drop-down list. By default, the component will be assigned to whichever layer is selected in the Layers box when you initially drag the component onto the canvas. For more information on layers, see Using multiple layers on the canvas. If desired, you can jump to the applicable layer settings on the Form Control Sheet by clicking the binoculars icon next to the drop-down list.
Parent	The parent component that this component is assigned to. If blank, then the component does not have an assigned parent. Currently, only Panel components can be designated as parents. If a component has an assigned parent, then that component is positioned within the parent instead of within the canvas at large. If the parent is hidden, all "child" components of that parent are also hidden. The parent assignment is automatically completed when a component is dragged into a panel in the Form Designer, and automatically cleared when a component is dragged out of a panel. In most cases, you should not need to manually assign a parent. For more information, see Using panels to group and position components.

Style and formatting properties

To define the component formatting, you can assign one or more styles to the component. Styles can impact formatting properties such as fonts, borders, and colors.

If you do not want to apply a style to this component, or if you want to override one or more formatting properties in an assigned style, click the Show Advanced Settings link underneath the Style box to display the individual formatting properties. For more information on defining individual formatting properties for a component, see Formatting overrides for Axiom form components.

Even though Pointer Color and the range colors can be affected by styles, these properties are exposed as component behavior properties because they are unique to the gauge component type. Also, the Axiom Software platform does not currently provide any styles specifically designed for gauge components.

Item	Description
Style	Optional. The styles used to determine the formatting of the component. You can assign one or more styles. Click the Select component styles button [...] to open the Choose Style dialog. Using this dialog, you can select one or more styles to apply to the component. The available styles depend on the component type and the skin assigned to the form. For more information, see Using component styles. Some components have several styles that are specifically designed for that component type, while other components may only have the "generic" styles that are available to all components. When using a generic style, keep in mind that they may not be useful for all components. You can view a description of each style and view the effective formatting applied by the selected styles within the Choose Style dialog.
Component Theme	(Deprecated.) The theme to use for the component instead of the form-level theme. If left blank, the component uses the form-level theme. This setting should be left blank unless you need to override the form theme. Generally speaking, themes should be set at the form level and only overridden at the component level when necessary. This setting is available in the advanced component properties (click Show Advanced Settings under the Style box). On the Form Control Sheet, the setting displays using the name Theme Override. NOTE: This setting only applies if your form uses a legacy skin (any skin except the default Axiom2018). The Axiom2018 skin does not use themes.

Item

Description

Style

Optional. The styles used to determine the formatting of the component. You can assign one or more styles.

Click the Select component styles button [...] to open the Choose Style dialog. Using this dialog, you can select one or more styles to apply to the component. The available styles depend on the component type and the skin assigned to the form. For more information, see Using component styles.

Some components have several styles that are specifically designed for that component type, while other components may only have the "generic" styles that are available to all components. When using a generic style, keep in mind that they may not be useful for all components. You can view a description of each style and view the effective formatting applied by the selected styles within the Choose Style dialog.

Component Theme

(Deprecated.) The theme to use for the component instead of the form-level theme. If left blank, the component uses the form-level theme.

This setting should be left blank unless you need to override the form theme. Generally speaking, themes should be set at the form level and only overridden at the component level when necessary.

This setting is available in the advanced component properties (click Show Advanced Settings under the Style box). On the Form Control Sheet, the setting displays using the name Theme Override.

NOTE: This setting only applies if your form uses a legacy skin (any skin except the default Axiom2018). The Axiom2018 skin does not use themes.

Position and size properties

You can view the position and size properties for a component by clicking the Show Advanced Settings link under the Style box. If necessary, you can edit these properties directly (instead of automatically modifying them by adjusting the component's position and size on the canvas). For more information on using these settings, see Controlling component position and size.

Item	Description
Reference Location	The reference location determines how the x-position and y-position of a component are evaluated. By default the reference location is UpperLeft. NOTE: This setting is not exposed in the advanced component settings. It can be changed on the canvas by double-clicking the corner selection handles of a component, or you can edit the setting on the Form Control Sheet directly.
X Position Y Position	The x-position determines the component's position along the horizontal axis, and the y-position determines the component's position along the vertical axis. Both are evaluated relative to the reference location. Positions can be set in pixels (default) or percentages.
Width Height	The width and height determine the size of the component. The width and height can be set in pixels (default) or percentages. Size keywords are also available to support special behavior.
Rendering Order	The order in which the component is rendered in the layer. A component with a larger order number will display above a component with a smaller order number. For components that support tab navigation (tabbing to the next editable component), the rendering order also determines the tabbing order. NOTE: On the Form Control Sheet, this setting is labeled as Z-Index.
Lock Layout	If enabled, the component size and position are locked and cannot be changed by dragging and dropping on the canvas. This optional setting is intended to protect against accidentally moving or resizing a component while working on the canvas.
