Release notes

TIP: Looking for release notes for all Axiom products, including current and previous versions? Click here.

NOTE: Download a PDF version of the release notes here.

New features in 2020.2

See What's new.

About the Release Notes

Syntellis is pleased to announce the 2020.2 release of Axiom Budgeting & Performance Reporting. Each product release provides new features, enhancements, and configuration options to meet your needs. Many of these features and enhancements are a direct result of your feedback and suggestions.

The purpose of these release notes is to provide you with the following:

  • High-level descriptions of new features
  • Information to know before upgrading
  • Steps for preparing for and scheduling your upgrade
  • List of fixed issues

TIP: Periodically, the release notes are updated when new information is available, including patch release fixes. To view the latest release notes, we encourage you to view them in the Axiom Budgeting & Performance Reporting online help. On the help home page, simply click the Release Notes link at the top of the page.

What to know before upgrading

IMPORTANT: You must apply the Axiom Software 2020.2 upgrade before applying any 2020.2 Axiom product upgrades. Axiom Software upgrades are backwards compatible so you can upgrade different products at different times, but you must upgrade to the Axiom Software 2020.2 before the first product upgrade. Refer to the Axiom Software 2020.2 Release Notes and Axiom Healthcare Suite 2020.2 Release Notes for considerations before upgrading. Apply this update ONLY if you have already applied the release and completed all the manual setup steps from the corresponding release notes.

When upgrading to the 2020.2 version of Axiom Budgeting and Performance Reporting, keep in mind the following:

  • This product upgrade contains updated templates, calculation methods, driver files, and remediated defects.
  • KHA delivered reports may be replaced. Any report that you saved under a different name or created new will remain untouched. Replaced reports are available in Document History, if needed.
  • Any KHA delivered report that was moved to a new location will automatically move back to its original location.
  • KHA product templates and calculation method libraries will be replaced.
  • Product task panes will be replaced.
  • Process definitions will not be replaced.
  • Security roles and sub-systems will be reset to their configured settings. All user security exceptions you may have made will remain intact.
  • Specific items configured as part of your company or organization's implementation such as imports, exports, driver files, and process management files, will remain as is. Any required modifications to these areas are covered in the release notes, if required.

Preparing for and scheduling upgrades

Summary of the upgrade process:

  1. Review product release notes – Review this document to familiarize yourself with the new features and functionality.

  2. Schedule an installation date – Submit a request to your organization's Axiom Master System User (MSU) to contact support@kaufmanhall.com to schedule an installation date and time with at least three days of advance notice. The request should include the following information:

    • Desired Axiom Software platform version.

    • Desired Axiom for Healthcare product and version.

    • Indicate whether to first refresh the Axiom test sandbox with a copy of the production instance of Axiom and apply update(s) to it. If so, provide the soonest that Syntellis can do this.

    • Propose an approximate two-hour downtime window when Syntellis can apply update(s) to the production instance of Axiom during regular business hours, Monday through Friday 7 AM to 7 PM Central (except holidays recognized by Syntellis).

  3. Complete manual configuration updates – After installing the upgrade, review any manual setup steps needed to enable features for this version.

    IMPORTANT: Some features in this release require configuration after installation and/or considerations to be aware of before or after installation. For more information, see Manual configuration instructions and technical considerations.

Getting help and training

Syntellis provides world-class resources at your fingertips directly within the Axiom Software system. Axiom Help provides topics, knowledge base articles, documents, webinar/training announcements, and videos to guide you through managing your system. To access these resources, do any of the following:

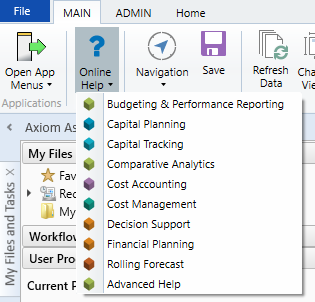

  • Windows and Excel Clients - From the Main or Admin ribbon tab, click Online Help, and then select the product. Axiom Help opens in a new browser window.

    NOTE: The online help will only open for products you are licensed to use.

  • Form/Web pages - Form/web-enabled features and products include contextual help directly within the user interface. This information provides a quick summary and/or instructions specifically related to the screen you are using. You can access this information by clicking the question mark in the upper right corner of the screen. To access the full Axiom Help system, click Open Help at the top of the contextual help dialog.

Manual configuration instructions and technical considerations

Change to Axiom security update utilities

In the 2020.2 release, we have made an important change to the security utilities for Axiom Budgeting and Performance Reporting. Each utility now uses its respective sub-system exclusively. For example:

  • \Axiom\Reports Library\Budgeting Utilities\Security\Budget Security Update.xlsx
  • \Axiom\Reports Library\Management Reporting Utilities\Security Setup\Performance Reporting Security Update.xlsx

Each security utility is now exclusively using its respective sub-system role as a requirement to activate the [Save] tag on the related security utility.

For example, for Performance Reporting, if either the “IsEnabled” or the “Management Reporting System” are FALSE, the save tag will not activate. Both conditions must be TRUE to save.

In addition, a new Data Filter has been applied to AQ1 to limit the qualifying records into this utility of: IsEnabled=TRUE AND Subsystems LIKE '%Management Reporting%'

For the Budgeting Security utility, a similar change applied. For example, if either the “IsEnabled” or the “Budget Planning System” are FALSE, the save tag will not activate. Both conditions must be TRUE to save.

In addition, a new Data Filter has been applied to AQ1 to limit the qualifying records into this utility of: IsEnabled=TRUE AND Subsystems LIKE '%Budget Planning%'

Drill to Imaging Vendor Link

The 06-Load AP Detail and 08-Load Accrued Receipts imports do NOT include document image links because each client import is unique. Therefore, you will need to manually update your imports by completing the following steps:

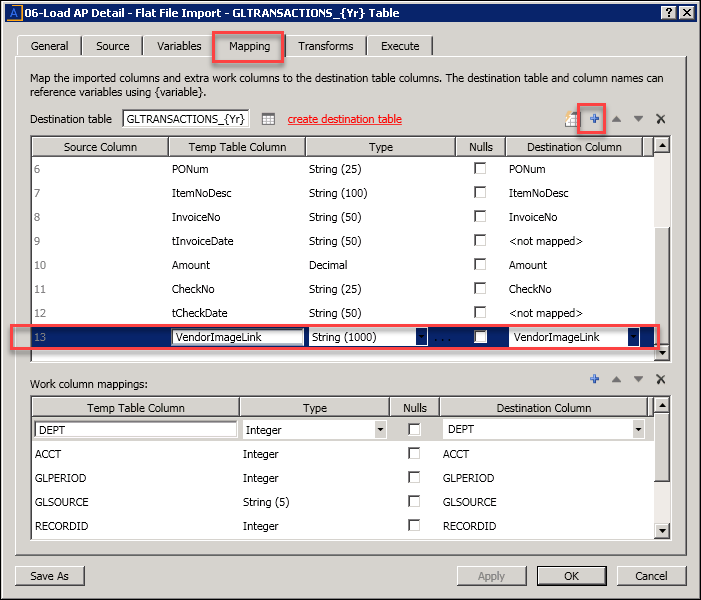

  1. Navigate to the AP Detail import and select Edit.

  2. In the Load AP Detail dialog, click the Mapping tab.

  3. In the Mapping tab, on the right above the Destination column, click the blue plus icon to add a new row.

  4. In the new row, enter information in the Temp Table Column, Type column, and Destination Column, as shown in the following example.

2020.2.1 - Issues fixed

The following tables list the resolutions for issues addressed in 2020.2.1, released on July 20th, 2020:

Drivers, templates, calc methods, and other non-reporting features

Calc Methods

Issue Description
PFB-08617 - Other Pay calc method changes do not remain upon rebuild [TFS 46293]

Issue: When changing the calc method of a pay type within Other Pay (Dollars only), the default calc method of dimensions is what rebuilds back into a plan file. In the Bud_Pay12_yyyy table, there is no BudCM or BudSpread column as there is in the financial budget table Budyyyy to store the name of the changed calc method.

Resolution: Corrected by adjusting logic for calc method library settings to assign calc method from sheet for dollar type AQs on labor tabs. Adjustment retrieves assigned calc method on rebuild of plan files.
PFB-08746 - Stat_Rev Global Sum calc method not working correctly [TFS 47416]

Issue: In the Global Sum calc method of the Stat_Rev tab, the GetData formulas in columns CH:CK, which reference the LookUpCol from Global Sum driver, currently looks for Global department/account and budget group exceptions. If it finds a Global, the system stops there and does not look for any department/account or budget group exceptions.

Resolution: Corrected by identifying GetData formulas in columns CH:CK for multiple calc methods and rearranged the order to retrieve the proper description and rates.
PFB-08941 - Provider Comp: Incorrect formula for Global Stat reference [TFS 49515]

Issue: In the ProviderComp calc method, the last part of the formula is incorrect for columns K and M (column L is correct). Also, the formula should reference column DM in columns K-L.

Resolution: Identified logic in columns K-L for Summary View and Detailed View for interfaces and Add New Provider blocks to correct field lookups (e.g. CYPTtl, YTD, CYPCalc respectively), depending on the column. In addition, updated the formulas to reference PayType (column DM) to determine a code to lookup the ProviderVol driver table.

Drivers

Issue Description
PFB-08656 - Circular reference occur in the Labor Rates driver [TFS 46851]

Issue: In the Labor Rates driver, the formula in column AL of the Default Blank Group block is =$AL$79, but the formula inserted by the AQ is different. A circular reference occurs on placement of the calc method.

Resolution: Corrected by adjusting the formulas to remove the circular references in the Default Blank Group calc method.

Data Management

Issue Description
PFB-08757 - LOCATION.Description is too short [TFS 48309]

Issue: When value codes on the table Location and column Description(LOCATION.Description) exceed 50 characters, the update fails and the system displays an error.

Resolution: Corrected by changing the max string length for LOCATION.Description field to 50 from 100.
PFB-08772 - Character limit in the InitiativeID description [TFS 48310]

Issue: Request to Increase the string length limit of the Description column in the InitiativeID table from 50 to 100 to support initiatives with names that include more than 50 characters.

Resolution: Corrected by changing the max string length of the Description field in the INITIATIVEID dimension from 50 to 100.

Templates

Issue Description
PFB-07566 - NoBudget calc method does not recognize CYPMethod [TFS 36850]

Issue: In the Expense tab, the NoBudget calc method does not recognize CYPMethod.

Resolution: On the Expense tab, corrected by updating the NoBudget calc method to recognize CYPMethod. On the Stat_Rev tab, corrected the NoBudget calc method logic to use the same logic in column CK used on the Expense tab.
PFB-07910 - Stat_Rev: Apply inflation to detail accounts set to No is still being applied [TFS 38187]

Issue: Within the Budget Revenue Adjustment driver (39), there is an option to select Apply Inflation to Detail Accounts (Yes/No).​ When the user selects No, the system continues to apply​ inflation to the detail accounts on the Stat_Rev sheet of the plan​ file.

Resolution: Corrected the logic in multiple formulas in the Stat_Rev sheet to query Yes/No from the RevenueAdjustments driver for the plan file BudgetGroup.
PFB-08673 - No option to interface payments in Budget Provider Detail - Payments [TFS 46722]

Issue: When reviewing the configuration and setup for Provider Detail, there is the option to interface payments. However, interfacing payments is set to use AQ10, but it is hard coded to be turned off.

Resolution: Identified that an existing issue with the decommissioned ProviderDetail!AQ10. Corrected by activating and reconfiguring the AQ along with incorporating into the RunAxiomQueryBlock functionality.

PFB-08646 - Incorrect formulas in Add New JobCode Block calc method on the Staffing tab[TFS 46821]

Issue:When using the staffing labor method and then adding a new jobcode, the current logic was used so that the FTE would adjust to the calcluated value based on the Start/End range used in column AE,AF. When we did not have the current formula, the FTE would not factor down to the correct value if the start month was other than 1. So for example, if I added 1. FTE for the period 7-12, that is six months for the effective FTE sholuld be .50. So the current formula was allowing for this. HOWEVER, it is incorrect in that it is factoring down too much.

Resolution: Corrected by removing the first factor from the eleven cells with incorrect formulas in column Q.

PFB-08718 - Salaries Do Not Match error missing ProviderComp dollars [TFS 47470]

Issue: On the ProviderComp tab, in the attic, we changed how we save the ProviderComp salary value for use in the Salaries Do Not Match flag on the Expense tab. Since ProviderComp is now a plan file part, we saved this value using a pseudo code. This value was then to be used on the Expense tab to compare total salaries. However, the value on ProviderComp was not being saved to the database.

Resolution: Identified the [save] tag changes needed to correct the issue.
PFB-08897 - Overtime rate for new job codes defaults to the base rate rather than reading the percentage set in the Labor Configuration driver [TFS 48870]

Issue: When adding a new job code to the Jobcode tab and using History as the setting for pay rates, overtime defaults to the base rate rather than reading the percentage set in the Labor Configuration driver.

Resolution: Corrected by adjusting column H in the Jobcode calc method, allowing overtime rate to reference the labor configuration setting for new job codes.
PFB-08920 - Formula issue in ProviderComp 40 line calc method [TFS 49513]

Issue: In the ProviderComp tab, the formula in the monthly budget dollars columns (AT:BE) for the Percent of Gross (line 9) of the ProviderComp calc method is incorrect.

Resolution: Corrected by adjusting the formula in range AT:BE so that it will multiply the result by EZ148 to correctly calculate a monthly amount for the Percent of Gross line.

Utilities

Issue Description
PFB-08318 - Budget Deductions Utility: Contractual Allowance totals row excludes Capitated row [TFS 41840]

Issue: The Contractual Allowances row excludes the Capitated row in the summation formula.

Resolution: Corrected the Contractual Allowances row to include the Capitated row in each block.
PFB-08865 - Budget Deduction includes incorrect HideRow logic starting at Payor 10 (Row719) [TFS 48458]

Issue: Budget Deduction includes incorrect HideRow logic starting at Payor 10 (row 719). Any organization with more than nine payors will encounter this issue.

Resolution: Corrected the HideRow logic so that all 20 payors handle the show/hide logic consistently.

Reports

Management Reporting - Dashboards

Issue Description
\Axiom\Reports Library\System Files\Forms\Management Reporting\Managers Month End\VCC_KHA_Drill03Employee.xlsx

Issue: PFB-08687 - Month End Review displays zero data for the current month's actual column [TFS 48337]

Symptom: The Employee drill report (VCC_KHA_Drill03Employee) in the Month End Review displays zero data for the current month's actual column. The drill on the job code (VCC_KHA_Drill02JobCode) shows dollar values for the current month but drilling on that job code, which opens the Employee drill report, shows no values for dollars in current month.]

Resolution: Identified that the Employee drill uses different logic for Dollars Actuals, and corrected the issue by implementing logic similar to the JobCode drill.
\Axiom\Reports Library\System Files\Forms\Management Reporting\Managers Month End\VCC_KHA_Drill07JE.xlsx

Issue: Change verbiage in Month End Dashboard > VCC > Transaction drill headers [TFS 49287]

Symptom: In the Month End Review dashboard > Variance Comments Collection tab > Transaction drill, change the data grid header from "JE Descrip" to "Description".

Resolution: Corrected the following:

  • Changed "JE Descrip" to "Description"
  • Changed "JE Src." to "GL Source"

Management Reporting - Report Packages

Issue Description
\Axiom\Reports Library\Management Reporting\Report Packages\Manager\Dept Monthly Package.xlsx

Issue: Variance Alert report seems incomplete or includes too much information [TFS 42198]

Symptom: In the Department Monthly Package, the Variance Alert report seems incomplete or includes too much information. There are no distinct reporting sections, specifically Expense sections, as compared to the previous report, and all the alerts reflect as favorable.

Resolution: Corrected by updating an AQ1 filter to only include valid exception records.

Issue: Content in the BudVar, EmpID, and JC tabs do not output correctly when processing files [TFS 42209]

Symptom: In the Dept Monthly Package, the hide row does not work for the Summary, Revenue, Expense, Per Unit Summary, Staffing Information, JobCode, and Employee ID tabs when performing File Process.

Resolution: Platform change corrected with update of Axiom Software in a previous version.

Management Reporting - Utilities

Issue Description
\Axiom\Reports Library\Management Reporting Utilities\Payroll\BiWeekly to Monthly.xlsx

Issue: PFB-08512 - Biweekly to Monthly utility does not correctly classify non-accruing pay types [TFS 45595]

Symptom: In the BiWeekly to Monthly report, non-accruing pay types (PAYTYPE.ACCRUE='NO') use the month number reference in cells I9:T9, which are hardcoded 1 thru 12. This range should be dynamic for clients whose fiscal year is not January through December.

Resolution: Corrected by adjusting the static range I9:T9 utilized in SUMIF functionality to be dynamic.

2020.2.2 - Issues fixed

No client facing issues were addressed in 2020.2.2, released on August 17th, 2020.
