AX1459

Using the Web Client Container with Axiom forms

Axiom forms can be shown within a standard "container" that provides access to various features that can be used on the form. For new forms, the container is enabled by default.

Using the container, form users can:

• Navigate to other web-enabled files or to designated areas of the Web Client
• View alerts and notifications
• View and add comments about the current Axiom form
• Filter the data shown in the current form
• Access tools for use with Axiom forms

This container displays as two bars across the top of the form. The top blue bar is the Global Navigation Bar and the gray bottom bar is the Task Bar. Clicking an icon in the task bar opens the corresponding feature in a panel along the left-hand side.

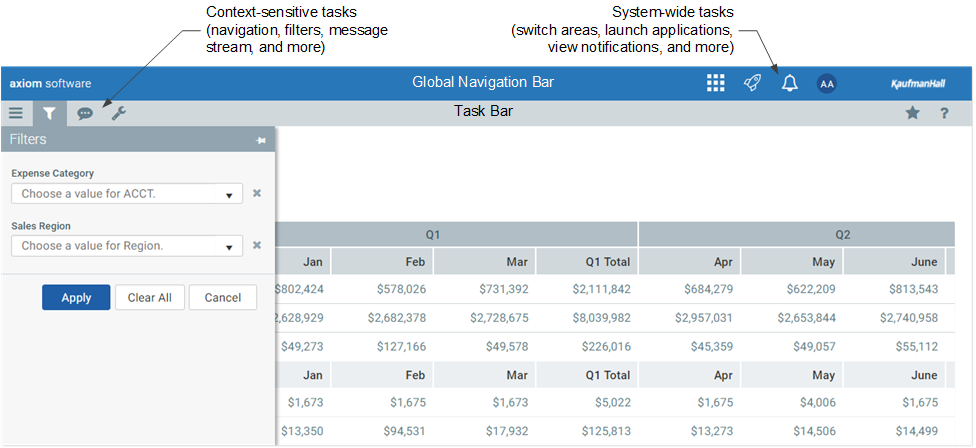

Example Web Client Container

Task bar feature overview

Some of the task bar features are entirely built-in, and other features require certain setup steps within the Axiom Software system or within the form itself. The following table summarizes these features, and indicates whether additional setup steps are required:

Feature	Description
Navigation panel	Provides navigation to other web-enabled files and to designated areas of the Web Client. Axiom Software provides a default template for this navigation that can be customized as needed. Additionally, individual forms can optionally have defined navigation links that will display in this panel when the form is open. See Defining content for the Web Client Navigation panel.
Message Stream panel	Displays user comments about the current Axiom form. Users can add new comments. This panel displays the same content as the Message Stream task pane in the Desktop Client. For more information about using the Message Stream panel in the Web Client, see Commenting on form documents (Web Client Help). NOTE: The message stream is enabled on a per file basis, using the property Enable Message Stream on the default Control Sheet. If the message stream is not enabled for the form source file, then the Message Stream panel will not be available for that form in the Web Client.
Filters panel	Allows users to filter the data shown in the current form, by selecting values for defined refresh variables. This must be set up on a per form basis using a RefreshVariables data source. See Defining refresh variables for Axiom forms.
Attachments panel	Allows users to upload, open, and manage plan file attachments. This panel is only available for form-enabled plan files, and only if attachments are enabled for the file group. See Using the File Attachments panel to manage attachments.
Tools menu	Opens a menu with access to various form tools, such as the ability to download a copy of the source spreadsheet, create a snapshot copy of the form, or create a PDF of the form.
Help	If the Axiom form is associated with a help code, the corresponding help content is displayed in a panel along the right-hand side of the page. This is intended to provide custom, context-sensitive help for the form. See Associating an Axiom form with a help code. Otherwise, by default the help icon launches Axiom Software help in a new tab.

Enabling the Web Client Container for an Axiom form

The Web Client Container is enabled for new Axiom forms by default. All new forms automatically have access to this container unless you disable it.

If enabled, the container displays as follows, depending on the environment where the form is opened:

• In the Web Client and the iPad app, the full container is available (though some container features may be limited in the iPad app).

• In the Desktop Client, only the gray task bar portion of the container is available, and only when the form is opened as a web tab within the application. The task bar is exposed in this environment to provide access to common form features such as filters, messaging, and attachments. The global navigation features do not apply in the Desktop Client, so the top blue bar is hidden. Note the following:

  • The Navigation panel and the Tools menu are not available in the Desktop Client.
  • If the Axiom form is opened as a dialog or task pane within the Desktop Client, the entire container is hidden. Container features do not apply when using Axiom forms in this specialized way.

NOTE: The ability to disable the Web Client Container is provided for backward-compatibility only, so that customers with forms created in version 8.2 or earlier can continue to operate "as is" after upgrading. It is intended that these customers will eventually migrate to using the container in conjunction with other enhanced form features.

To enable or disable the Web Client Container for a form:

1. From the top of the Form Assistant task pane or the Form Designer dialog, click Edit form properties.
2. In the Form Properties dialog, select or clear the Use Web Client Container check box. By default this setting is enabled for new forms.

TIP: You can also enable or disable this setting by editing the Use Web Client Container field at the top of the Form Control Sheet.

Generally speaking, the container should be enabled for all forms or none of them. Having the container appear and disappear depending on the currently open form may be a confusing experience for end users.
